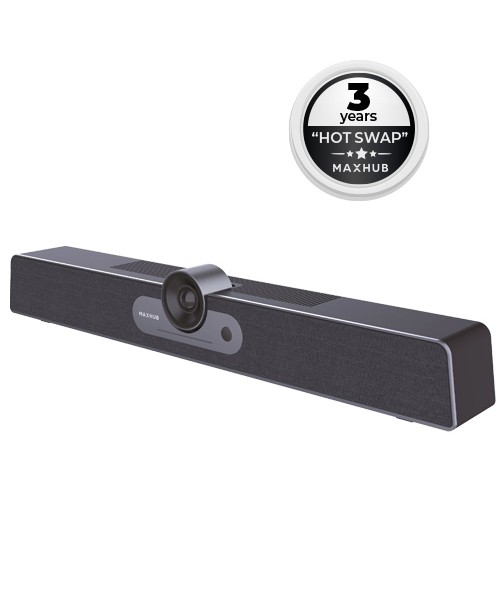

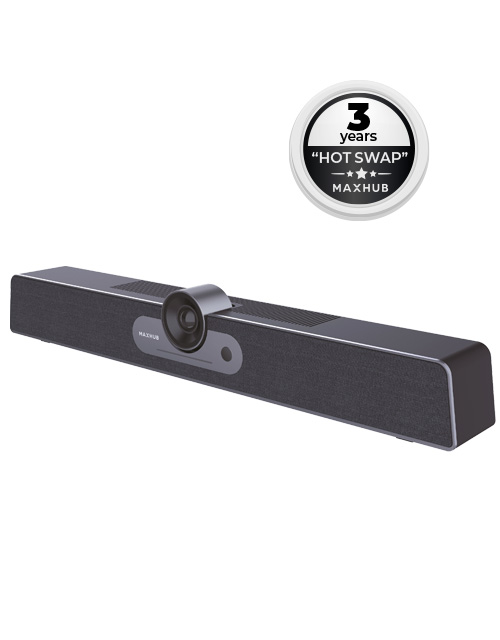

MAXHUB UC S07 – USB
Videoconferencia All in One USB: Cámara 4K @30fps FOV 120°. ePTZ Zoom x5. Ajuste vertical de la óptica de ± 15°. Micrófono (6) hasta 8 mts. Altavoz 8W + 3W (80dBSPL@1m). Funciones: Auto encuadre de los participantes y seguimiento del orador activo. Sensor PIR (auto encendido mediante detección de movimiento 3mts). Hasta 10 pressets. Reducción de ruido, cancelación de eco y anti-reverberación. PoE Power (IEEE 802.3af or 802.3at). Bluetooth 5.0. Incluye: Soporte de pedestal y soporte de pared.
Documentos Técnicos
UC S07
Más información
| Característica | Especificación |
|---|---|
| Camera | |
| Sensor | 1/2.3-inch 12MP Sony sensor |
| ZOOM | 5x Digital Zoom |
| Pixel | 12M |
| Resolution and Frame Rate | H.264/MJPEG (1) 3840 x 2160 (2) 2560 x 1440 (3) 1920 x 1080 (4) 1280 x 720 (5) 1024 x 576 (6) 960 x 540 (7) 800 x 600 (8) 640 x 480 (9) 640 x 360 (10) 480 x 270 (11) 352 x 288 (12) 320 x 240 |
| YUY2 (1) 640 x 480 (2) 640 x 360 (3) 480 x 270 (4) 352 x 288 (5) 320 x 240 (6) 320 x 180 (7) 160 x 120 |
|
| Output Format | MJPG; YUY2; H.264 |
| Field Of View | Adjustable Angle 120° (D) ± 15° (V) |
| Focus Mode | Fixed-Focus |
| Focus Distance | 1m |
| Special Features | |
| Auto Framing: automatic adjustment FOV to fit in all participants Speaker Tracking: voice triggered people tracking 10 Zooming Pre-sets for instant setting up |
|
| Audio | |
| Speaker | Sound Chanel 1.1 Output Power 8W + 3W Maximum Sound Pressure 80dBSPL@1m |
| Input/Output Port | |
| Audio Out | Used for external audio equipment |
| USB 3.0 Type-C | Connect USB host, upgrade system, etc. |
| DC 2.0 | Used for 12V power input power supply |
| RJ45 | No IP Support, only provides PoE power |
| Voice Pickup Range | |
| Microphone Frequency Range | 100Hz ~ 7.5kHz |
| Frequency Range | Microphone 150Hz ~ 18kHz |
| Microphone Quantity | 6 |
| 8m | |
| Signal to Noise Ratio | >75dB |
| Special Features | Noise Reduction, Echo Cancellation, Anti-Reverberation, Built-in AGC Algorithm |
| System Requirements | |
| Power | |
| Overall Power(Max.) | 10W |
| PoE Power | Yes (IEEE 802.3af or 802.3at) |
| Power Requirements | 12V |
| Compatibility | |
| Support major VC software including ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc. Supports Windows XP/7/8.1/10/11, Android 8.1 or higher, and MAC OS 10.12 or higher |
|
| PIR Sensor | In power-on mode, it will automatically enter standby state If no moving object is detected within 3 meters within 30 minutes, minimizing energy consumption; In standby mode, it automatically starts up when detecting moving objects within 3 meters, simplifying the setup process. |
| Environmental Condition | |
| Operation Temperature | 0℃ – 40℃ |
| Operation Humidity | 10% – 90%RH |
| Storage Temperature | -20℃ – 60℃ |
| Storage Humidity | 10% – 90%RH |
| Altitude | Below 5000 meters |
| Physical Specifications | |
| Dimension(Lx Hx D) | 462 x 76 x 93 mm (18.2 x 3.0 x 3.7 inch) |
| Dimension(package)(Lx Hx D) | 1pcs 538 x 160 x 169 mm (21.2 x 6.3 x 6.7 inch) 4pcs 628 x 433 x 380 mm (24.7 x 17.0 x 15.0 inch) |
| Gross Weight | 1pcs 2.55kg/5.62lbs 4pcs 12.00kg/26.46lbs |
| Net Weight | 1.05Kg/2.31lbs |
| Warranty | |
| 3 year hot swap Accessories one year | |
| What’s In The Box | |
| 1 x USB Cable (1.8m/70.9 inch), 1 x Remote Control 1 x Power Adapter, 1 x Wall-mounted Components, 1 x Peeping Cover |
|
| Mount | |
| Wall-mounted TV mount kit (Optional) |
|
| Application Supported | |
| MAXHUB Align software for Windows & Mac OS | |
